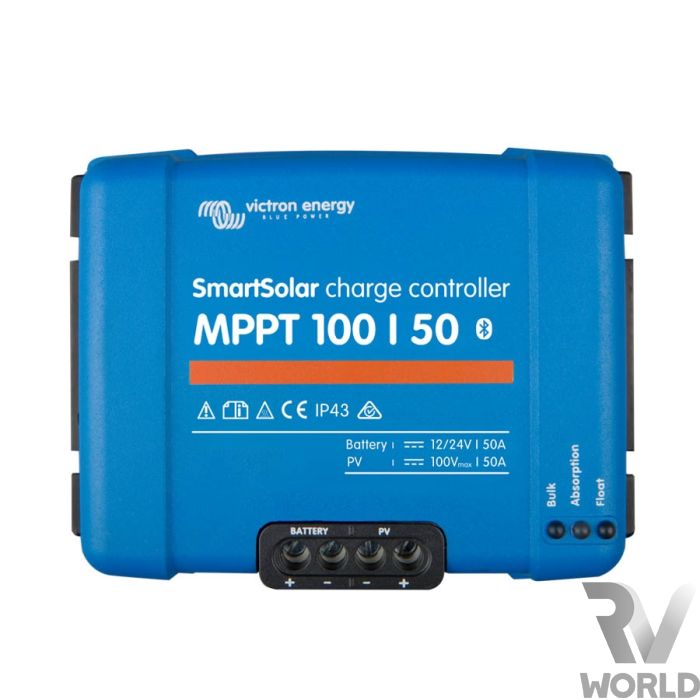

Victron SmartSolar 50A 12/24V MPPT Solar Regulator with Bluetooth
The SmartSolar MPPT Solar Charge Controller efficiently manages solar power performance and features a multi-stage recharging process that prolongs battery life.
Victron MPPT Solar Regulator with Bluetooth 100/50
The Victron BlueSolar Solar regulator maintains battery health, prolonging battery life, and can be remotely controlled and monitored with a Bluetooth.
This MPPT solar regulator ensures your solar system is maintaining peak performance with a charge controller that constantly monitors the current output
and voltage of your solar panels, ensuring all power is harvested and stored correctly.
MPPT Ultra-Fast Maximum Power Point Tracking works by monitoring the voltage and current output of your solar (PV) panels continuously, ensuring the maximum amount of solar power is converted into storage.
The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.
Features:
Ultra-fast Maximum Power Point Tracking (MPPT)
Advanced Maximum Power Point Detection in case of partial shading conditions
Outstanding conversion efficiency
Natural convection cooling
Automatic battery voltage recognition
Flexible charge algorithm
Over-temperature protection and power derating when the temperature is high.
Specifications:
Rated charge current: 50A
Nominal PV power, 12V: 700W
Nominal PV power, 24V: 1400W
Max. PV short circuit current: 60A
Maximum PV open circuit voltage: 100V
Dimensions (mm): 130H x 186W x 70D
Weight: 1.3kg
| System voltage | 12/24V Auto Select |
|---|---|
| Maximum solar input current | 700W for 12V battery bank. 1400W for 24V battery bank |
| Maximum load output current | 50A |
| Self consumption | 12V: 30mA 24V: 20mA |
| Ambient temp. range | 30 to +60°C (full rated output up to 40°C) |
| Enclosure protection class | IP43 (electronic components), IP22 (connection area) |
| Weight | 1.3kg |
| Dimensions (mm) | 130H x 186W x 70D |
