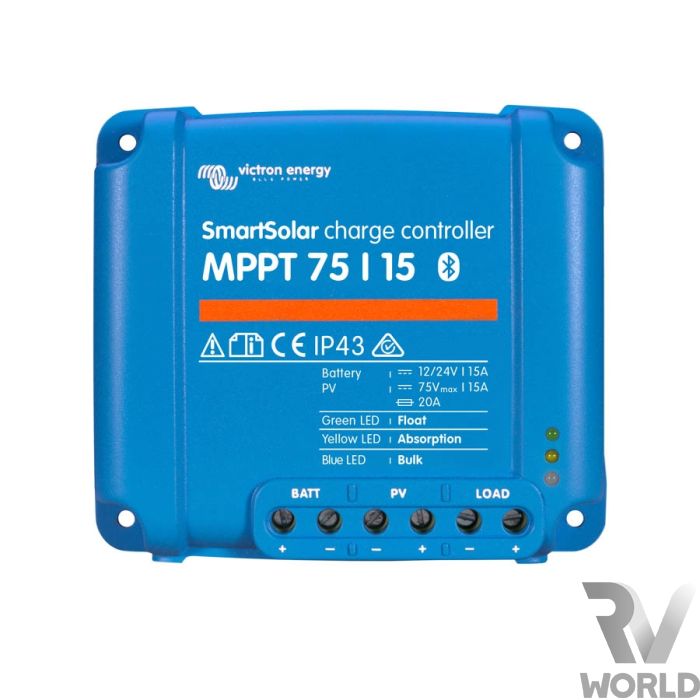

Victron SmartSolar 15A 12/24V MPPT Solar Regulator with Bluetooth
The SmartSolar MPPT Solar Charge Controller efficiently manages solar power performance and features a multi-stage recharging process that prolongs battery life.
Victron MPPT Solar Regulator with Bluetooth 75/15
A solar charger gathers energy from your solar panels and stores it in your batteries.
Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time.
SmartSolar maintains battery health, extending its life.
By constantly monitoring the voltage and current output of your solar (PV) panels, Ultra-Fast Maximum Power Point Tracking (MPPT) technology ensures that every drop of available power is rinsed out of your panels and harvested for storage.
The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect.
Features:
Ultra-fast Maximum Power Point Tracking (MPPT)
Built in Bluetooth
Advanced Maximum Power Point Detection in case of partial shading conditions
Outstanding conversion efficiency
Natural convection cooling
Automatic battery voltage recognition
Flexible charge algorithm
Over-temperature protection and power derating when the temperature is high.
Specifications:
Rated charge current: 15A
Nominal PV power, 12V 220W
Nominal PV power, 24V 440W
Max. continuous load current: 15A
Peak efficiency: 98%
Dimensions (mm): 100H x 113W x 40D
Weight: 0.5 kg
| System voltage | 12/24V Auto Select |
|---|---|
| Maximum solar input current | 220W for 12V battery bank. 440W for 24V battery bank. |
| Maximum load output current | 15A |
| Self consumption | 12V: 25mA 24V: 15mA |
| Ambient temp. range | -30 to +60°C (full rated output up to 40°C) |
| Enclosure protection class | IP43 (electronic components), IP22 (connection area) |
| Weight | 0.6kg |
| Dimensions (mm) | 100H x 113W x 50D |
