Victron BMV-702 Battery Monitor 500A
Victron BMV-702 Battery Monitor

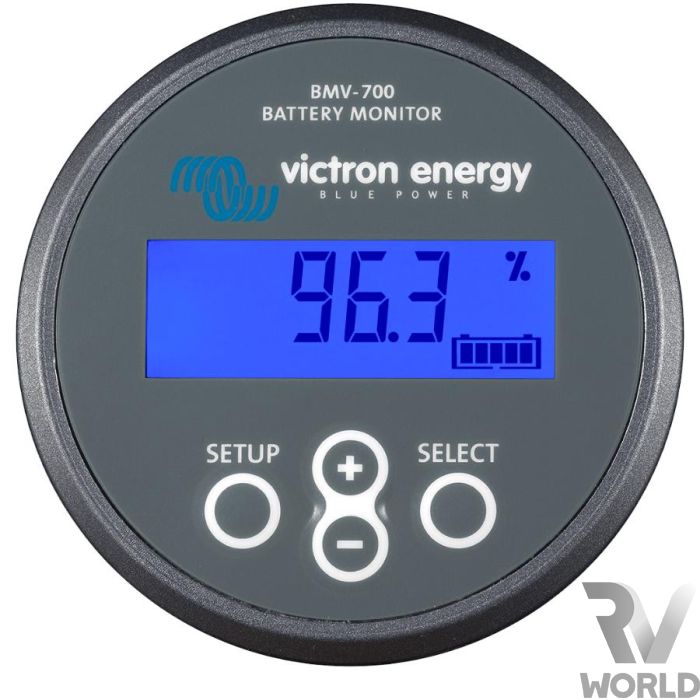

The Victron BMV-702 Battery Monitor is highly accurate and easy to install. It measures multiple parameters for one battery bank via a 500 amp shunt. It has a battery 'fuel gauge', time to go indicator and much more. The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. The BMV-702 uses a complex algorithm to take all these factors into account.
The BMV-702 is also easy to install, all electrical connections are made to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable.
Features:
Measures battery voltage, current, power, ampere-hours consumed and state of charge
Measures remaining time at the current rate of discharge
Additional input which can be programmed to measure the voltage of a second battery, battery temperature or midpoint voltage
Programmable visual and audible alarm
Programmable relay, to turn off non-critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Specifications:
Wide input voltage range: 9.5 – 95V
High current measurement resolution: 10 mA (0,01A)
Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V
Battery capacity (Ah): 20-9999Ah
Operating temperature: -40 to +50 degrees Celsius
Temperature measurement range -20 to +50 degrees Celsius
Dimensions Front Bezel (mm): 69L x 69W
Diameter Body: 52mm
Body depth: 31mm
Very easy to install. Includes 500A shunt, RJ12 connection cable (10m) and battery cable with fuse (2m).
