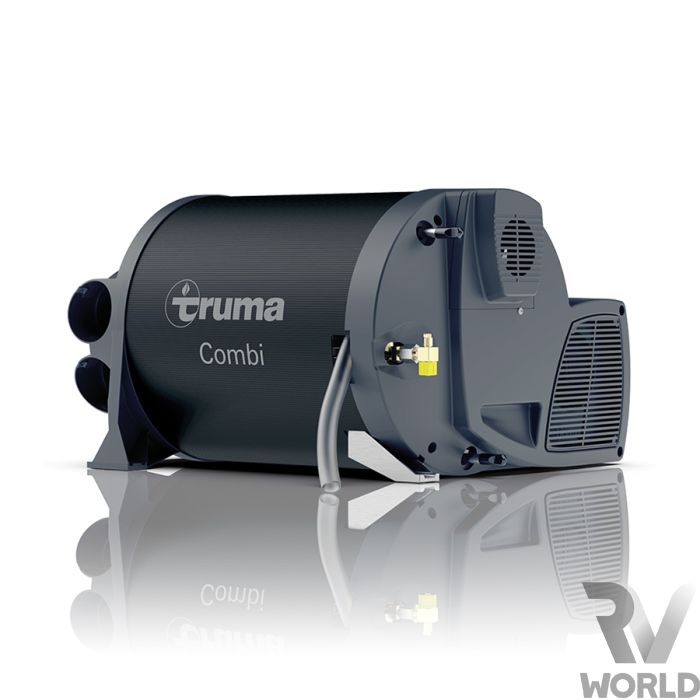

Truma Combi 4E Plus. Water Heater & Air Heater - Gas/230V
Recreational vehicle air heating and hot water heating combined into one compact unit
Truma Combi 4E. 10L Water Heater + Air Heater
The Truma Combi 4E Water & Air Heater is an intelligent dual purpose machine designed to provide you with uninterrupted heating and hot water on your next road trip. Gas powered air and water heater is an innovative product that can cater to its two heating tasks both simultaneously and independently. Powered by LPG gas and operating on 12 volts, the system can generate a large 4000 watts heat. All this while remaining environment-friendly thanks to its 97% energy efficiency rating.
The functions of the Combi 4E are accessed via an LCD control panel, programmed for user-friendly operation. The appliance comes with a stainless steel 10L water tank which is both weatherproof and leakage resistant. It heats water in as little as 23 minutes (80 minutes with the air heater operational), with the additional ability to mix and heat water while you shower. The product is equipped with performance-enhancing features including a safety sensor, self-draining mechanism and anti-frost technology. The system is ducted (60mm ID ducting to be purchased separately), and comes with four outlet vents. Despite its high-performance rating, the Combi 4E range is highly conservative in its fuel consumption and minimal in its weight and dimensions. This maintenance-free dual purpose air and water heater is the ultimate companion for a state-of-the-art motor home.
Features:
Compact and lightweight (weighs 14kg without water)
Gas powered (12 volts needed for ignition), with optional 240 volts electricity-powered water heating when connected to mains power.
Independent air and water heating functions (can also work simultaneously)
Functions accessed through the user-friendly LCD control panel
High power output (3900 watts)
10 litre durable and leak-proof stainless steel water tank
Rapid water heating (23 minutes)
97% energy efficiency rating
Equipped with anti-frost technology
Automatic monitoring of temperature
Self-draining
Maintenance-free
Stainless steel water tank
Specifications:
Suits: Caravans and Motorhomes (not suitable for marine applications)
Energy source: LPG or 240v (12v connection required for automatic gas ignition)
Operating pressure: 2.75 kPa
Water Capacity: 10L
Water pump pressure: Max 2.8 bar
Water heating time: Approx. 23 min
Heater & Water time: approx 90 min
Thermal output electrical boiler operation (240v): 980W / 1960W
Thermal output mixed operation (gas and electric): 3900W
Thermal output gas operation: 3900W
Gas Consumption: 130-260 g/h
Airflow rate- 4 outlets: max 287 m3/h
Power consumption: Temp max of 5.6A DC (average power consumption 1.1A DC)
Standby current: Approx. 0.001A
Weight: 14kg
Dimensions (mm): 510L x 450W x 300H
Kit Includes:
Truma Combi 4E CP Plus Controller
4 x End air outlet closeable - 65mm Black
4 x Clamp Duct Combi/Saphir
4 Nut for end air outlet Combi/Saphir
1 x Grill Air Intake Climaster Combi/Saphir
1 x Flue kit
NOTE: 60mm ID ducting not included please see options to purchase
Must be installed by a certified gas fitter
| Weight | 14kg |
|---|---|
| Dimensions (mm) | 510L x 450W x 300H |
| Warranty | 2 years |
| Capacity | 10L |
