Morningstar Tristar 60A MPPT Solar Regulator

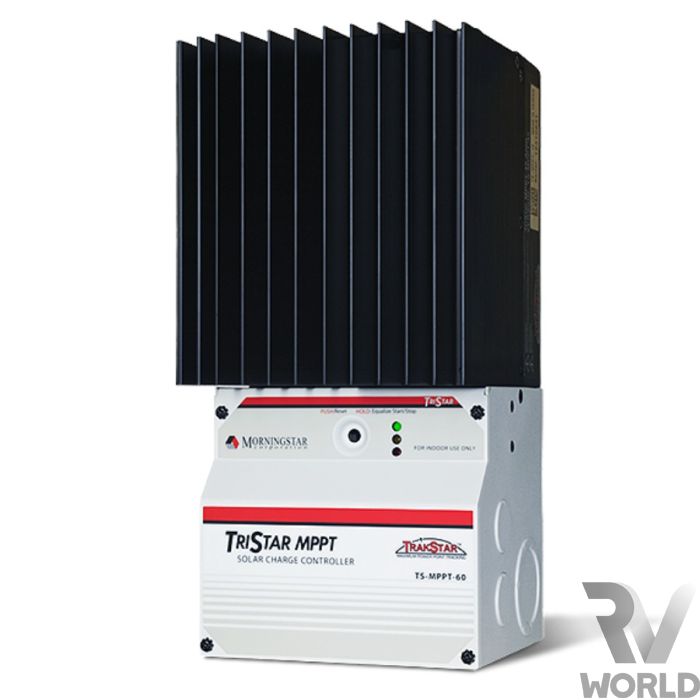

Tristar 60A MPPT Solar Charge Controller
Morningstar’s TriStar MPPT solar controller with TrakStar Technology™ is an advanced maximum power point tracking (MPPT) battery charger for large off-grid solar (PV) systems. The controller provides the industry’s highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve.
Features:
Maximizes solar energy harvest
Highest peak efficiency of 99%
Rated for up to 60 amps output
Up to 150 volts PV open circuit
Includes remote temperature sensor
Marine grade terminals, epoxy encapsulation and conformal coating
Extremely reliable due to a robust thermal design with no internal cooling fan and no mechanical relays.
Extensive Networking and Communication Capabilities
Metering and Data Logging
5 year warranty
Specifications:
System voltage: 12/24/36/48V
60A Maximum solar input current: 800W @ 12V, 1600W @ 24V, 3200W @ 48V
Self consumption: 2.7W
Suitable battery types: Flooded; Sealed; Gel
Ambient temp. range: –40°C to + 45°C
Dimensions (mm) 291H x 130W x 142D
Weight: 4.2kg
Please note: Unit does not come with a digital meter. It is an optional extra.
| System voltage | 12/24/36/48V |
|---|---|
| Maximum solar input current | 800W @ 12V, 1600W @ 24V, 3200W @ 48V |
| Self consumption | 2.7W |
| Suitable battery types | Lead Acid (Flooded), AGM, Gel, Calcium |
| Ambient temp. range | –40°C to + 45°C |
| Enclosure protection class | Marine grade with epoxy encapsulation |
| Weight | 4.2kg |
| Dimensions (mm) | 291H x 130W x 142D |
