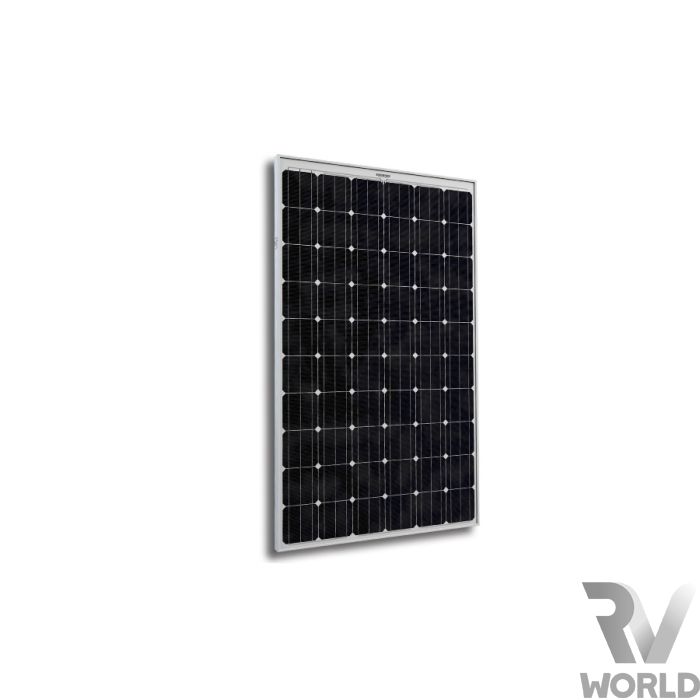

Solar Panel - Daqo 20W (12V)
The Daqo panel is ideal for off-grid and remote power. This high efficiency solar panel is designed for the toughest conditions.
Daqo 20W Solar Panel
This high efficiency solar panel is designed for the toughest conditions.
Features:
High efficiency
Nominal 12V DC for standard output
Outstanding low-light performance
High transparent low-iron, tempered glass
Output Cables 2.5mm². Length approx 900mm
Connector MC4 compatible
Specifications:
Maximum power: 17.8V
Nominal voltage: 12V
Tolerance: 0-3W
Short circuit Current: 1.19A
Maximum power current: 1.12A
Open circuit voltage: 21.88V
Maximum power voltage: 17.8V
Module efficiency:
Silicon type: Polycrystalline
Terminal box: Yes
Maximum system voltage: 1000 VDC
Operating temperature: -40~85C
Dimensions (mm): 350L x 490W x 25D
Weight: 1.58kg
Actual panel may vary slightly from image.
| Weight | 1.58kg |
|---|---|
| Dimensions (mm) | 350L x 490W x 25D |
| Warranty | 12 year product warranty |
| Maximum power | 17.8V |
| Nominal voltage | 12V |
| Tolerance | 0-3W |
| Short circuit Current | 1.19A |
| Open circuit Voltage | 21.88V |
| Maximum power voltage | 17.8V |
| Maximum power current | 1.12A |
| Silicon type | Polycrystalline |
| Terminal box | Yes |
| Maximum system voltage | 1000 VDC |
| Operating temperature | -40~85°C |
| Performance warranty | 25 year performance warranty |
