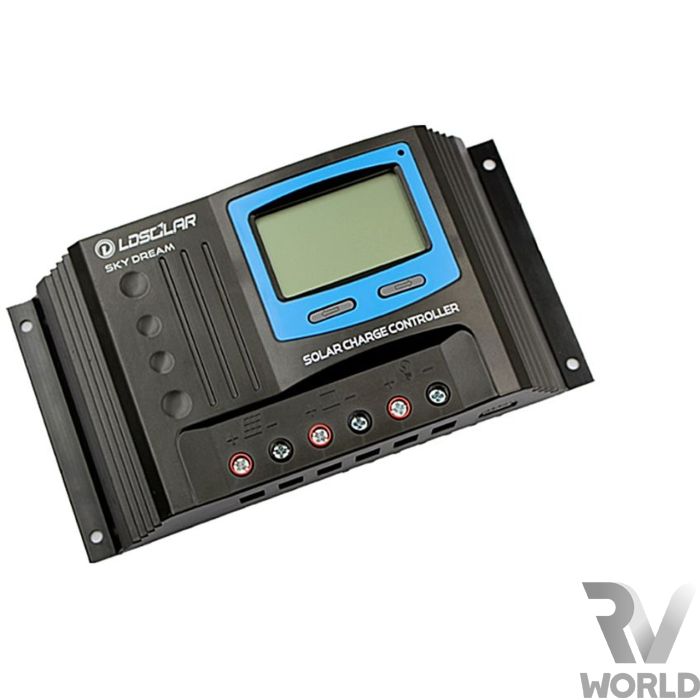

30A 12/24V Solar Regulator with Display
Solar Charge Controller 30 Amp 12/24V
The Sky Dream Series is a newly designed PWM solar controller. Its speciality lies in the inner 32 bits CPU, which enables the controller to work faster, with stability and reliability.
With the easy to operate LCD, this unit gives you total control over battery charging and power usage, as well as protecting your batteries for longevity
Features:
32 bits CPU, sampling precision is higher, operation speed is faster
12V/24V DC Automatic identify system voltage
3 stages PWM charging: Bulk, Boost, Float
Sealed, Gel, Flooded battery selection procedure
Humanized LCD displaying, dynamic display operation data and working state
Built-in Operation log, account system working state
Temperature Compensation Function and Controller Over Temperature Protection Function
Fullest digital protection functions: Overcharging, Over-discharging, Overload, Short Circuit, Reverse Connection, Controller Over-Temperature and so on
Colourful connector distinguish plus and minus poles
Specifications:
Dimensions (mm): 98H x 200W × 47.5D
USB output: 5V 1A (only 12V/24V 30A 40A)
| System voltage | 12V/24V |
|---|---|
| Maximum solar input current | 30A |
| Maximum load output current | 30A |
| Self consumption | <30mA |
| End of charge voltage | 13.7V / 27.4V |
| Ambient temp. range | -20°C to 60°C |
| Weight | 360g |
| Dimensions (mm) | 98 x 200 x 47.5 |
