RV Labs Pull Latch - 100mm White
- Buy 10 for $40.50 each and save 10%

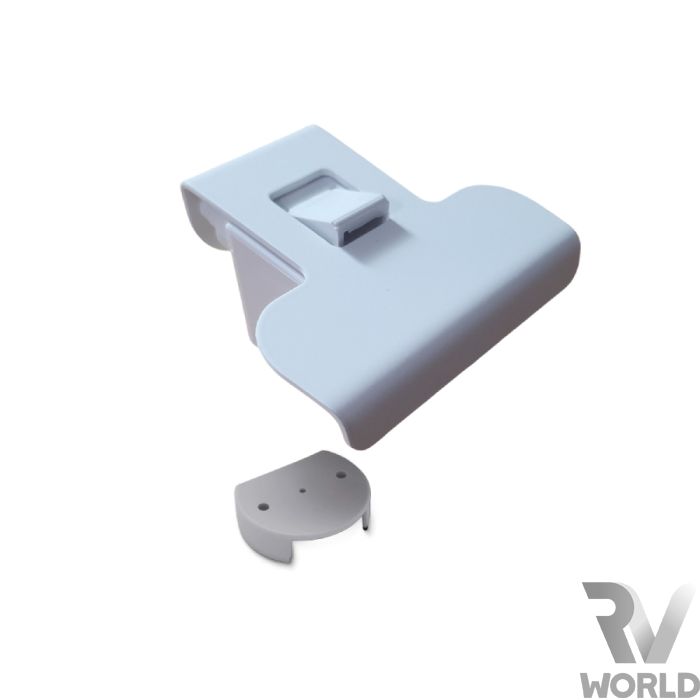

RV Labs Pull Latch - 100mm White
RV Labs latches are an innovative combination of a door handle and a locking latch. This new elegant lock handle provides a sleek modern finish used in the latest caravan, RV & motorhome joinery. Easy to fit and simple to use. Positive locking keeps all your drawers and cupboards shut while on the road.
Features
Easier to fit - No pre-drilled holes in door or drawer fronts.
Simple to use - a quick finger pull action unlocks the latch.
Slimline hande - Offers minimal modern look.
Positive locking – Locks when closed.
Suitable for furniture fronts with a thickness of up to 20mm.
100mm wide handle.
All latches come with a round striker plate included.
Made in Australia.
Installation & Tips
Screws for installation are not included, since they have to be chosen based on the depth of the material the door or drawer is made from. We recommend #8 screws at the appropriate length for securing the latch. The longer the screw (the thicker the door/drawer front), the stronger the latch will be.
We recommend applying a quick spray of WD-40 or silicone lubricant into the top of the latch mechanism after installation for the smoothest operation. If you notice any friction using the latch, adding additional lubricant will typically fix this.
If your latch isn’t releasing freely/easily, it may be because the attachment screws are too tight – try backing these screws out slightly (1/4 turn at a time).
Each door or drawer should have its own latch, and each latch needs its own “catch”. For drawers, we recommend a “rail” for each drawer where the catch can be installed.
A 1-3/16″ Forstner bit works great for drilling out the openings for the catches. There is a hole in the center of the catch that you can use to mark the location of the center of your drill bit. There should be an approximately 1/8″ gap between doors and drawers to allow space for the handle of these latches to pass through.
