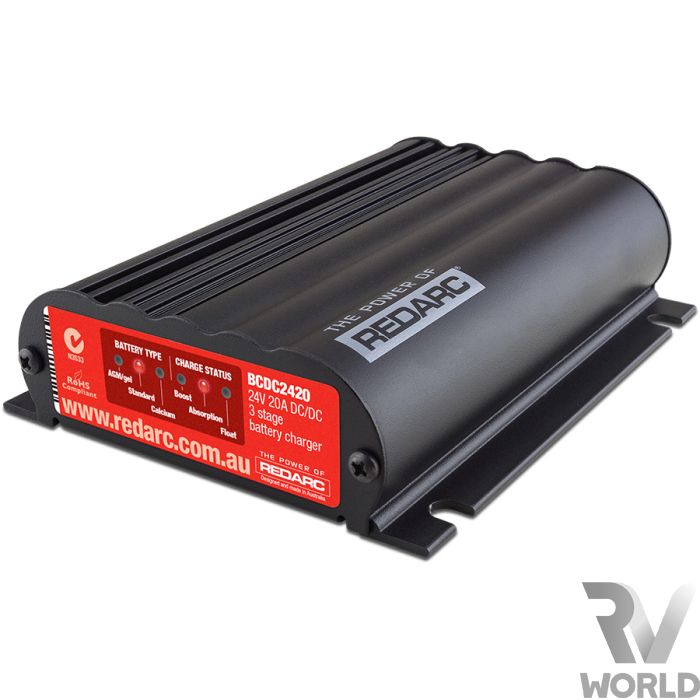

Redarc BCDC2420. 24V 20A DC-DC Battery Charger
REDARC BCDC2420 In-vehicle battery charger is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.
REDARC BCDC2420 In-vehicle battery charger
The REDARC BCDC2420 In-vehicle battery charger is a 24 Volt 20 Amp, three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.
The BCDC2420 features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The BCDC2420 features a MPPT charge controller, which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time. A simple relay will need to be installed in the system to have both solar and vehicle alternator wired into the BCDC unit.
Features
Multi Stage DC to DC Battery Charger and/or MPPT Solar Regulator
Start Battery Isolator
Fully sealed
No fan for super quiet operation
Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
Input Voltage: 9 - 32VDC
Maximum Charging Voltage: 30.6V
Output Current Rating: 20A
Input Current: 40A
Input Fuse Rating: 50A
Output Fuse Rating: 30A
Warranty: 2 Years
Standby Current Draw: <50mA
Output System Voltage: 24VDC
Output Power: 600W
Length: 150mm
Width: 120mm
Height: 37mm
Weight: 0.68kg
Type Approval E and CE
