Redarc BCDC1212T. 12V 12A DC-DC Battery Charger

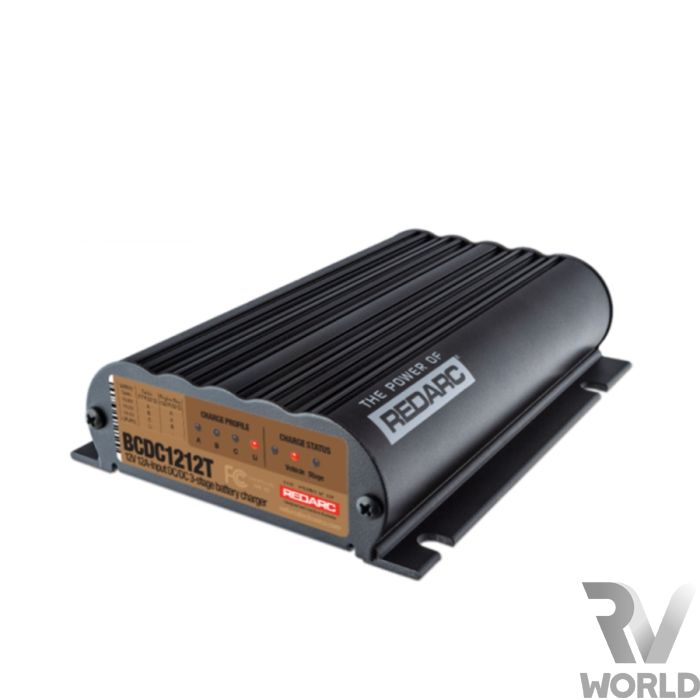

REDARC BCDC1212T Light-duty DC Battery Charger
The BCDC1212T is the ideal battery charger for trailers - such as dump trailers, boat trailers, car trailers, liftgate trucks and camper vans - with electrical equipment and accessories (for example, hydraulic pumps, winches and fridges). This 12 volt, 12 amp input-limited charger works in 12 and 24 volt vehicles. The BCDC1212T charges standard lead acid, calcium content, Gel, AGM and LiFePO4 batteries.
Features:
Multi-stage charging profile
Built tough for all conditions
Specifications:
Output Voltage: 12V
Maximum Charging Voltage: 15.3V
Input (Operating) Voltage: 9–32V
Vehicle alternator voltage: 12V vehicle | 24V vehicle
Boost Current (Max): 11A | 20A
Nominal Output Power: 147W | 294W
Input Current (Max.) 12A
Standby Current Draw: <8mA
Input Fuse Rating: 15A – 23A (FK23 recommended, not supplied)
Output Fuse Rating: 30A (FK30 recommended, not supplied)
Dimensions: 165 x 120 x 37mm
Weight (kg) 0.85
Warranty: 2 years
| Type of charger | DC-DC |
|---|---|
| Suitable battery types | lead acid, calcium content, Gel, AGM and LiFePO4 |
| Dimensions (mm) | 165 x 120 x 37 |
| Weight | 0.85 Kg |
| Warranty | 2 years |
What is a REDARC trailer battery charger and what does it do?
How to install the REDARC BCDC1212T trailer battery charger | DIY BCDC1212T Install
