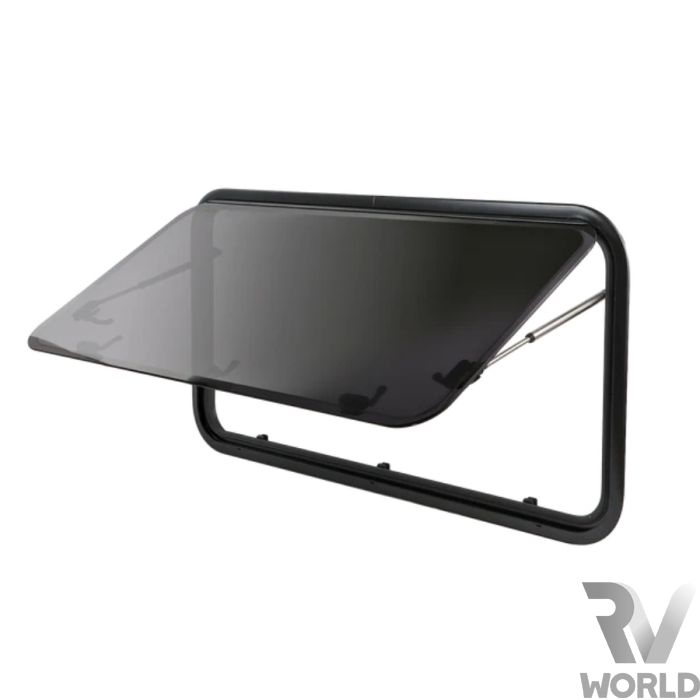

Ranger Double Glazed Window - Aluminium Frame. 500W x 350H
Ranger Double Glazed Window - Aluminium Frame. 500W x 350H
A complete window system for motorhomes and caravans. Acrylic double-glazed pane with integrated roller blind and fly net.
Features:
Outer Frame:
Black powder coated aluminium providing outstanding resistance to all weather conditions.
Inner Frame:
White powder coated frame with white roller blind and black fly screen. Pre-assembled for quick and easy installation.
Blind and fly screen slide very smoothly and are magnetically held together, no need to fiddle with annoying clips.
New tight weave fly screen to keep out those extra small sandflies and mosquitos.
Excellent privacy.
Acrylic Pane:
Double glazed and UV protected.
Offers excellent thermal insolation and reduced condensation.
Fully adjustable telescopic stays hold open at any position without requiring locking knobs.
Window blade angle opens up to 30 degrees.
Ventilation lock setting.
Specifications:
Cut-out dimensions (mm): 500W x 350H
External profile dimension (mm): 526W x 376H x 7D
Internal trim dimensions (mm): 540W x 390H x 47D
Wall thickness range 25-35mm
Corner radius for cut out hole: R75
Installation:
Simple and quick installation
The outer frame is secured to the wall using a one piece inner clamp ring.
The inner Frame is pre-assembled and screws to the wall over the window once the outer frame has been fitted.
The installation suits wall thickness from 25-35mm.
For wall thickness less than this, you will need to make a frame around the installation cut-out hole to build up the wall thickness.
| Warranty | 1 Year |
|---|---|
| Cut-out dimensions (mm) | 500W x 350H |
