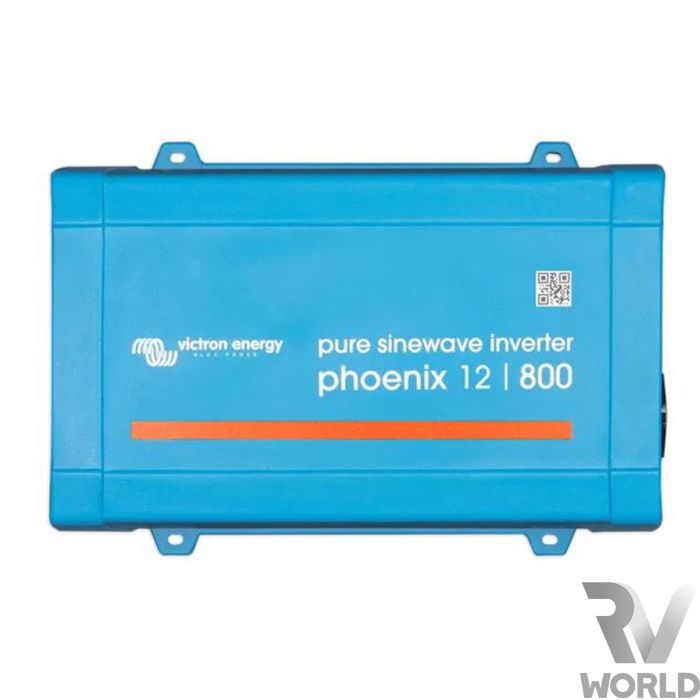

800W Pure Sine Wave Inverter. Victron Phoenix 800

Rating:
100% of 100

The Victron Phoenix inverter range is a top of the line inverter series developed for professional use. They are a popular off-grid power solution with a high surge capacity to suit almost all applications.

$539.00
In stock
Product Code
RV391

Victron 800W Inverter 12/24V

The Victron Phoenix inverter range is a top of the line inverter series developed for professional use, the Phoenix series of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance.
Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any type of load.
They are a popular off-grid power solution with a high surge capacity to suit almost all applications.

Features:

Fully configurable
Eco Mode - inverter will switch to standby when load deceases below a preset vaule.
LED Diagnosis
No special tools needed for installation
Extra start-up power
A unique feature is very high start-up power. Conventional high frequency technology does not offer such extreme performance.
DC battery connection wired directly to inverter

Specifications:

Cont. power at 25°C: 800VA
Peak Power: 1500W
Battery Connection: Screw Terminal
Standard AC Outlets: 230V AU/NZ (AS/NZ3112)
Operating Temperature Range: -40 to +60°C (Fan Assisted cooling)
Dimensions (mm): 105H x 230W x 325D
Weight: 5.5 kg

More Information
Dimensions (mm)295L x 180W x 72H
Warranty2 years
Input voltage options12V or 24V
Input voltage rangeDC 10.5–15.5V, 21–31V or 42-62V
Output voltage (AC)230V ± 2%
Output frequency50HZ
Output power (continous)800W
Output power (surge)1600W
Output waveformPure sine wave
Optimum efficiency91% or 94%
ProtectionOutput short circuit, overload, battery voltage too low or too high, over temeprature.
Input Power (no load)13-14W
Input Power (search mode)3-5W
