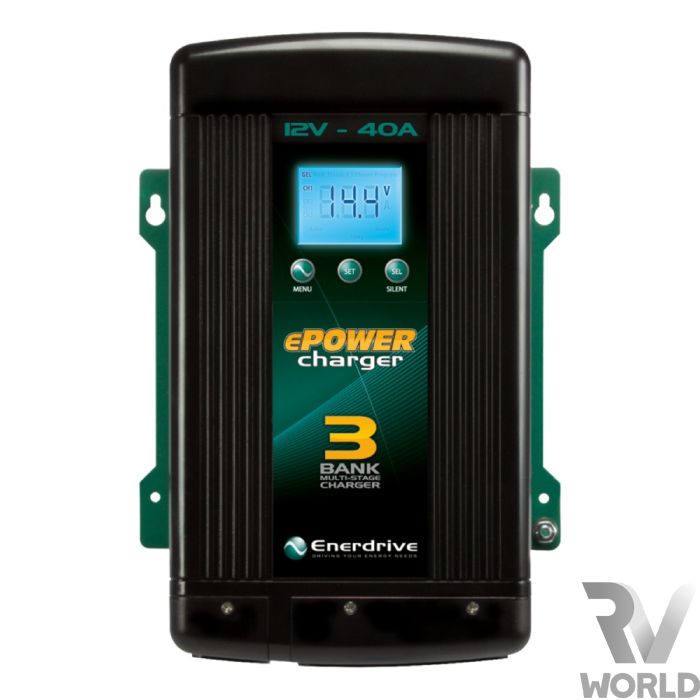

Enerdrive ePOWER Smart Charger (12V~40A)

ePOWER Charger 12V/40Amp

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger.
It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life.
Multi-stage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multi-stage charge sequence for perfect, fast and accurate charging.
Our ePOWER multi-stage smart 40A battery charger delivers four primary charge stages:-

Stage 1 – Bulk or Boost Charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage.
In this step, around 80% of the battery capacity is recovered as fast as possible.

Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced, allowing the current to drop as the battery approaches its full charge.

Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level.
This prevents the battery from being overcharged while supporting any additional loads connected to the battery, such as DC lighting and refrigerators.
This stage allows for the charger to be used as a DC power supply.

Stage 4 – Maintenance; This stage is a regular timed “return to bulk” stage.
After 7 days of constant operation in “float” the Enerdrive ePOWER Battery Charger will switch the charger from float to bulk to agitate the battery's electrolyte helping to provide an extended service life.

The recent advances in high capacity Lithium battery technology have seen the need to develop a battery charger suited to their needs.
With most traditional ‘smart’ chargers, their suitability to Lithium batteries is limited.
Lithium batteries require a constant current / constant voltage charge algorithm and are unique in that almost every amp-hour of charge delivered by the charger is accepted as one amp hour into the battery, hence the need to deliver a constant current as long as possible.

Features

Multi-stage Charging
Ability to charge 3 separate battery banks.
Programmable Battery bank
LCD Display (with backlight)
Smart Charging - will regulate its output based on the loads connected to your battery banks.
Silent mode
Temperature Sensor-Battery temperature sensor included with 3-meter cable.
Reverse Polarity, Overcharge and Over Temperature Protection
Battery temperature sensor included with 3 meter cable.

Specifications:

Battery Types: Lead Acid, Gel, Wet Flooded, AGM and Lithium batteries
Charge Stages: 4 Stages (Bulk, Absorption, Float, Maintenance)
Output Current (Maximum): 40A
AC Input Voltage (Nominal):90 to 265 VAC
Charge 14.2 – 15.5 V
Storage Range: -40° to 70° C
Power Consumption:350W (Full Load)
Operating Range: -20° to 60° C
Forced air ventilation (thermo controlled fan)
Dimension (mm): 295L x 206W x 86
Weight: 2.6Kg
2 Year Warranty
Complies with AS/NZS 60335.2.29 Including Australian deviations.
