Enerdrive ePOWER EN3DC30. 24V 30A DC-DC Battery Charger - Alternator & Solar Inputs

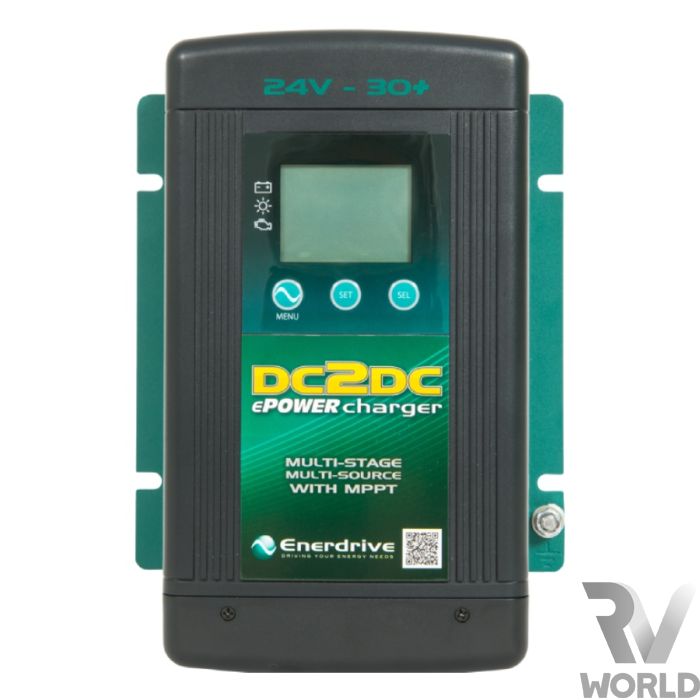

ePOWER EN3DC30 24V 30A DC-DC Battery Charger

The ePOWER DC2DC+ Battery Charger is a fully automatic, set and forget charger.
It is designed to quickly and accurately recharge your deep cycle batteries, utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.
The ePOWER DC2DC+ Battery Charger features multistage smart charging technology that enables the charger to be connected to your battery bank permanently.
With the input of multiple sources, you can be assured of charging your batteries whenever underway; or when the sun is shining on your solar array.

As dictated by battery manufacturer’s recommendations, deep cycle batteries require a multistage charge sequence for perfect, fast and accurate charging.
The ePOWER DC2DC+ smart charger delivers three primary charge stages.

Stage 1 – Bulk or Boost charge; The battery is charged at full rated output current of the charger until the battery reaches its final charging voltage, known as its absorption voltage. In this step, around 80% of the battery is recovered as fast as possible.

Stage 2 – Absorption Charge; With the charger voltage held steady, the remaining 20% is replaced with the charger allowing the current to taper off as the battery approaches full charge.

Stage 3 – Float; Finally, in the float stage the charger voltage is lowered and held at a constant and safe predetermined level. This prevents the battery from being overcharged, yet allows the charger to supply enough current to make up for the self-discharge losses of the battery, while supporting any additional loads connected to the battery (such as DC lighting and refrigerators).
This stage allows for the charger to be used as a DC power supply.

The ePOWER DC2DC+ Battery Charger will regulate its output based on the loads connected to your battery bank.
This function is important to maintain the life of your battery bank as some battery chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption stage for extended periods of time, which will damage the battery bank.
The ePOWER DC2DC+ Battery Charger has two methods of load based regulation to ensure your battery charger transitions to float when it should do so.

Features:

Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
40A+ output up to 40+°C with thermo controlled fan cooling
Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging

Specifications:

Output Rating
Output Voltage: 24V Nominal (17.0V min)
Output Current (Maximum): 43A
Output Power: 865W

Charger DC Output (CH1):
Selectable Battery Type: Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range: 27.6V – 31.0V
Float Voltage Range: 26.0V – 27.6V
Charger Current (User Selectable): 5 / 10 / 20 / 30A (default 30A)
Equalize Voltage (Flooded Battery): 31.0V
Equalize Charging Current: 10% of Bulk Current Setting
Charging Control: 2 stage / 3 stage selectable (Default 3 stage)
DC Output Bank Single
Current draw from CH1 when not in use ≤50mA
Efficiency: 95%

INPUT Rating (CH2 – MPPT Solar)
Input Voltage 14.5 – 45VOC
Maximum Input ≤ 23V input, 500W (600W allowable) ≥37.5V-45V input, 750W (800W allowable)

INPUT Rating (CH3 – Start/Alternator)
Input Voltage 10.5 – 16VDC / 21 – 32VDC
Dimensions (mm): 242H x 172W x 74D
Unit Weight: 1.85 Kg
