Enerdrive DC to DC Converters, 24V - 12V

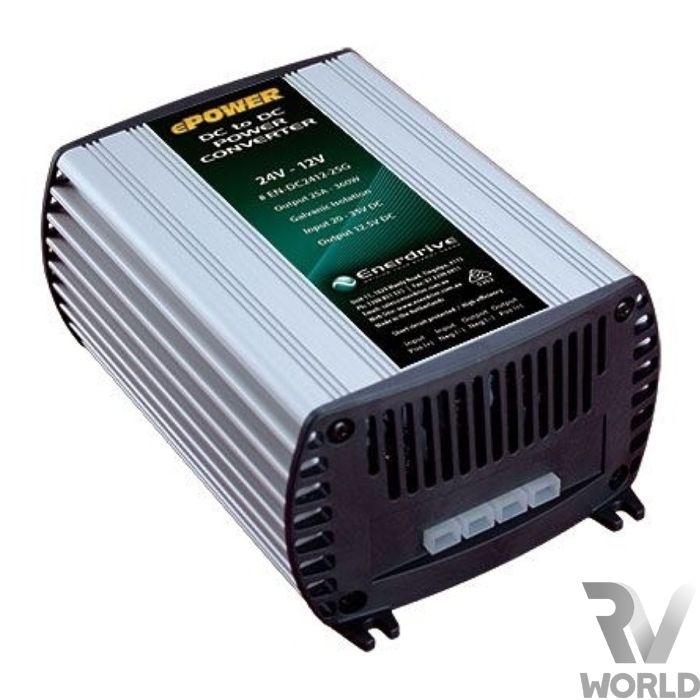

Epower DC to DC Power Converter 24V - 12V / 25A Gal Iso
The ePOWER DC to DC galvanic isolation converters are interference free, resulting in stable, reliable and efficient power supply
These compact and rugged DC to DC converters with galvanic isolation units emit little heat, making them safe and convenient for installation where space is hard to come by. Enerdrive’s DC to DC galvanic isolation converters use Switch Mode technology with protection against over-current / overload, over-heating, over-voltage and reverse polarity connection. Units can be paralleled multiple times to increase overall output. Models with 27.6V output can also be used as a 24V battery charger.
The terminals are standard 6.3mm blade connectors requiring 6.3mm spade terminals on the cabling (note uninsulated spade ends required to ensure fitments into terminals)
Feature:
DC-DC Converter with Galvanic Isolation
Switch Mode Technology with Additional Protection
Safe and convenient for installation where space is hard to come by
protection against over-current / overload, over-heating, over-voltage and reverse polarity connection.
Specifications:
Input (VDC): 20-35
Output (VDC): 12.5
Current: 25A
Load: 360W
Dimension (mm) 192L x 113W x 82H
Weight: 1.4KG
