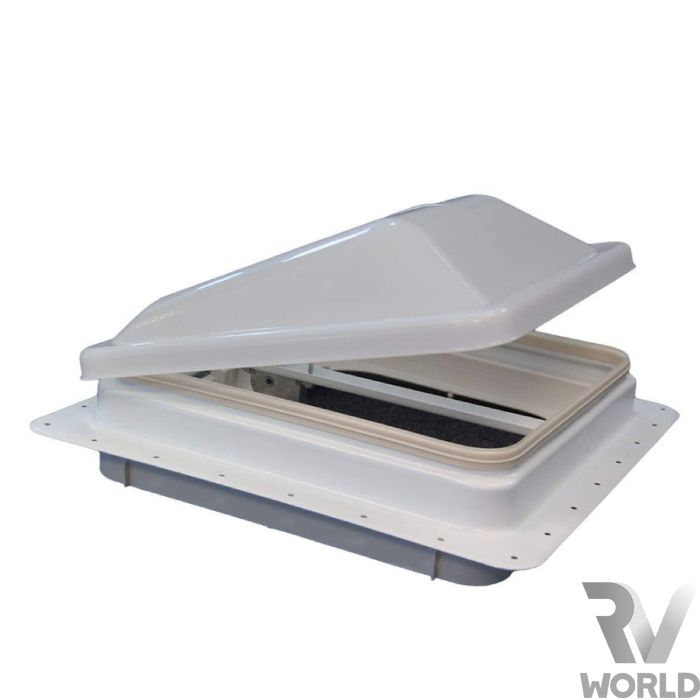

Ventline Vent - White Lid (360 x 360)
Ventline 14" x 14" Vent - White Lid
A metal framed roof vent with built-in fly screen and wind-up lid. With a separate internal flange that can be cut to suit your roof thickness.
Feature:
Radius corner screen frame design
Extra strong galvanized white powdered coated steel mounting flange
Long-lasting polypropylene vent cover
Bulb weather strip provides complete rain and wind seal
Telescopic garnish for easy finish trim-out on the interior
Integrated fly screen can snap out for easy cleaning
Specifications:
Cut out dimensions (mm): 355-360 square
Overall dimensions of flange on outer vent (mm): 420 x 420
Overall dimensions of inner trim (mm): 406 x 406
Vent height when lid closed: 120mm
Vent height when lid open: 273mm
Suits roof thickness from 25-100mm
Notes
The vent is supplied in 2 parts, the main outer piece and an internal trim. The internal trim can be cut down to size depending on your roof thickness. Without modifying the trim, the vent will only suit roof thickness from 73mm-100mm. For roof thickness between 25-73mm, the trim height can be easily cut down.
| Warranty | 1 year |
|---|---|
| Cut-out dimensions (mm) | 355mm x 355mm |
