Compact Classic Kit GE150. Fridge Only ≤ 150L
Easy to install DIY cooling kit
Compact Classic Kit GE150. Fridge Only ≤ 150L

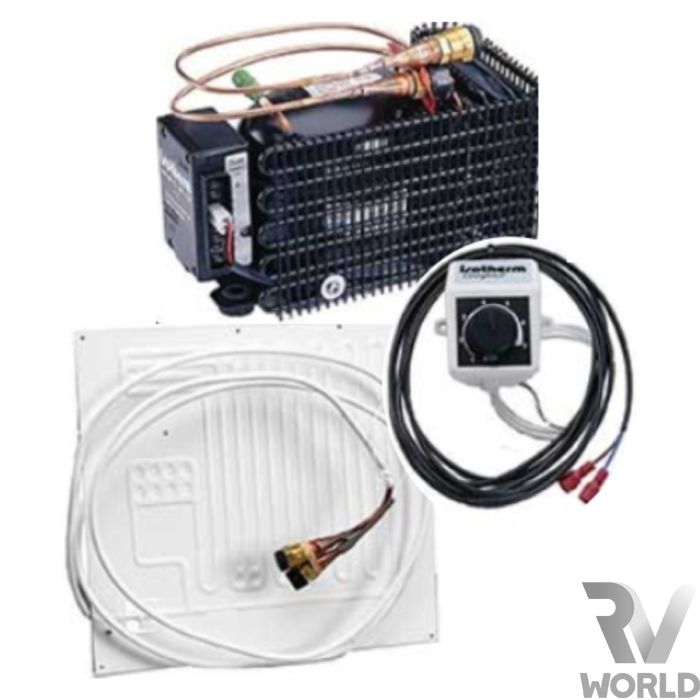

When standard units don’t fit, tailor-made, all in one kits can be an alternative. This air-cooled, ice box conversion kit that will refrigerate a space up to 150L. The unit comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy.
They come ready for connection to 12/24 V DC and are powerful, economical and superbly quiet in operation. These compressors use the traditional method, blowing air through the condenser by a fan to remove the heat. It is important that the compressor compartment is well ventilated, allowing cold air to enter from below and hot air to escape to the top.
Features:
Fridge use
Flat Evaporator Plate
Evaporator Plate can be bent to fit space
Air-cooled compressor
Mounting bracket
Thermostat
Refrigeration kit for 150L refrigerator
Pre-charged with quick-connects
Specifications:
Voltage:12/24V
Compressor: Danfoss BD35F
Evaporator: Flat
Evaporator Dimensions (mm): 386 x 361H
Compressor Dimensions (mm): 270L x 160W x 155H
Kit includes compressor mounting bracket
Designed to cool an insulated space with max volume: 150L
| Fridge capacity | 150L |
|---|---|
| Overall dimensions (mm) | Evaporator: 386 x 361. Compressor: 270 x 160 x 155 |
| Input voltage options | 12/24V |
| Weight | 9kg |
| Warranty | 2 years |
