Compact Classic Kit 2012. Fridge ≤ 170L OR Freezer ≤ 56L
Easy to install DIY cooling kit
Isotherm Cooling Kit 2012. Fridge or Freezer

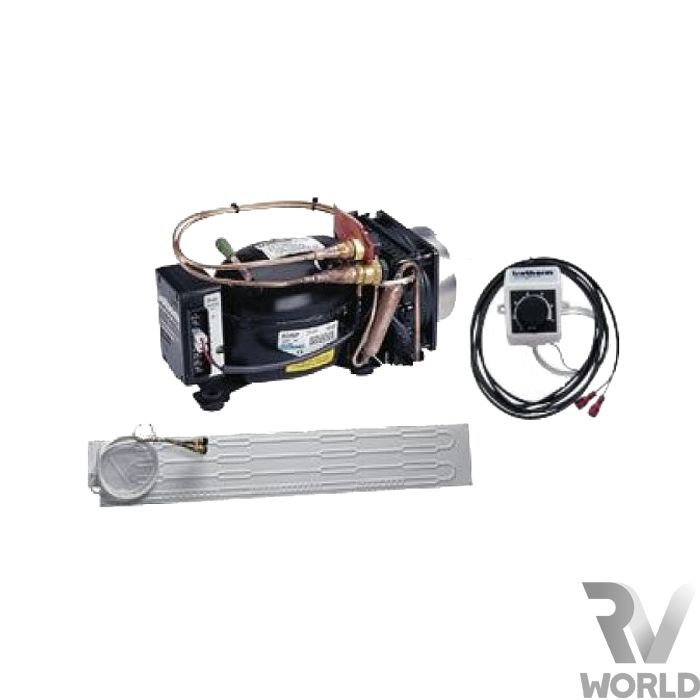

When standard units don’t fit, tailor-made, all in one kits can be an alternative. This air-cooled, ice box conversion kit that will refrigerate a space up to 170L. The unit comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy.
They come ready for connection to 12/24 V DC and are powerful, economical and superbly quiet in operation. These compressors use the traditional method, blowing air through the condenser by a fan to remove the heat. It is important that the compressor compartment is well ventilated, allowing cold air to enter from below and hot air to escape to the top.
Features:
Fridge / Freezer use
Flat Evaporator Plate
Evaporator Plate can be bent to fit space
Air-cooled compressor
Mounting bracket
Thermostat
Refrigeration kit for 170L refrigerator
Pre-charged with quick-connects
Specifications:
Voltage:12/24V
Compressor: Danfoss BD50F
Evaporator: Flat
Evaporator Dimensions (mm): 815 x 210
Compressor Dimensions (mm): 315L x 160W x 155H
Kit includes compressor mounting bracket
Maximum capacity:
- Fridge unit: 170L
- Freezer unit (-12°C): 56L
Kit includes compressor mounting bracket
Designed to cool an insulated space with max volume: 170L Fridge / 56L Freezer
| Fridge capacity | 170L if used as a fridge |
|---|---|
| Freezer capacity | 56L if used as a freezer |
| Overall dimensions (mm) | Evaporator: 815 x 210. Compressor: 315 x 160 x 155 |
| Input voltage options | 12/24V |
| Weight | 11kg |
| Warranty | 2 years |
