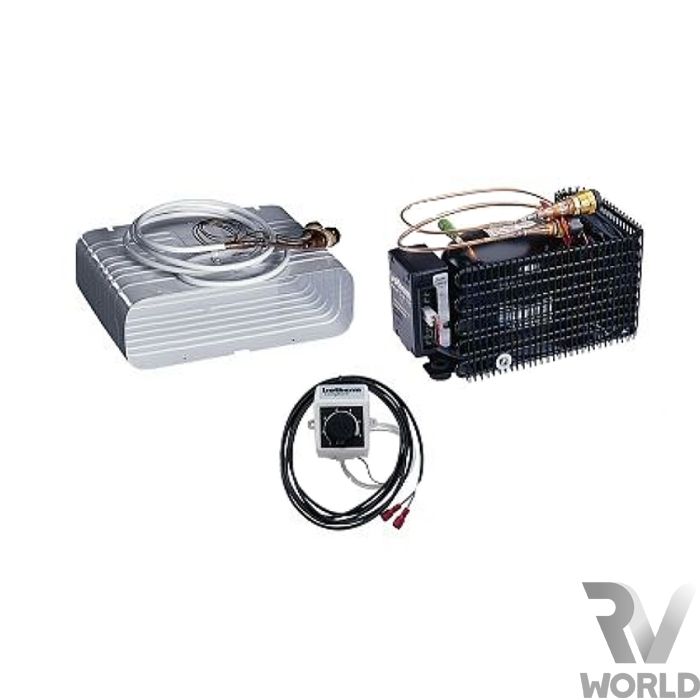

Compact Classic Kit 2001. Fridge ≤ 125L with Icebox
Easy to install DIY cooling kit
Isotherm Cooling Kit 2001. Fridge with Icebox
When standard units don’t fit, tailor-made, all in one kits can be an alternative. This air-cooled, ice box conversion kit that will refrigerate a space up to 125L. The unit comes pre-charged with quick-connections and 6' of flexible copper refrigeration lines, which makes installation easy.
They come ready for connection to 12/24 V DC and are powerful, economical and superbly quiet in operation. These compressors use the traditional method, blowing air through the condenser by a fan to remove the heat. It is important that the compressor compartment is well ventilated, allowing cold air to enter from below and hot air to escape to the top.
Features:
Fridge / Freezer use
Oval Evaporator Plate
Air-cooled compressor
Mounting bracket
Thermostat
Refrigeration kit for 150L refrigerator
Pre-charged with quick-connects
Specifications:
Voltage:12/24V
Compressor: Danfoss BD35F
Evaporator: Small-O
Evaporator Dimensions (mm): 240L x 85W x 210H
Compressor Dimensions (mm): 270L x 160W x 155H
Maximum capacity:
- Fridge unit: 125 L
- Freezer unit (-12°C): 60 L
- Deep Freeze unit (-18°C): 40 L
Designed to cool an insulated space with max volume: 125L
| Fridge capacity | 125L |
|---|---|
| Overall dimensions (mm) | Evaporator: 240 x 85 x 210. Compressor: 270 x 160 x 155 |
| Input voltage options | 12/24V |
| Weight | 9kg |
| Warranty | 2 years |
