BMPro J35D Battery Management

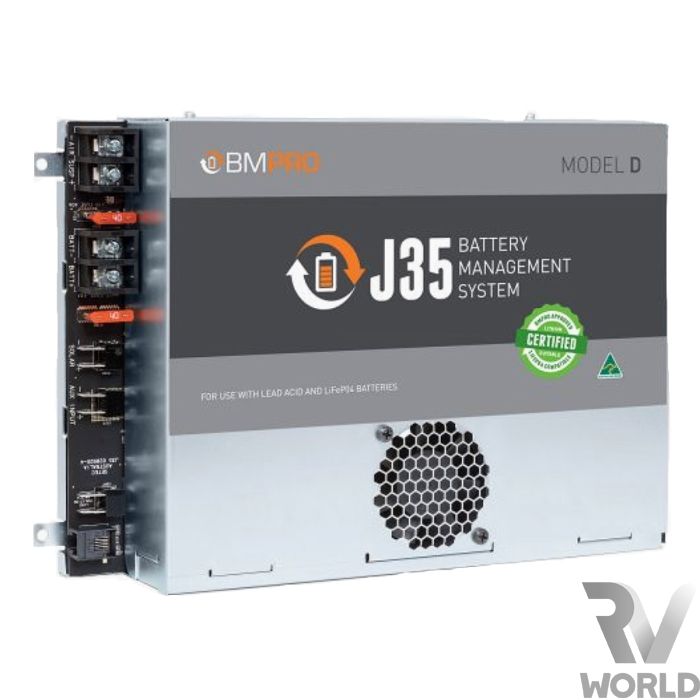

BMPro J35 Model D Battery Management System

J35 Model D is compatible with Lead Acid and Lithium battery system.
Specifically designed for Jayco Australia.
It features a built-in solar regulator, a multi-stage battery charger to ensure long battery life and full DC Distribution.
Use J35D to charge all types of lead acid batteries as well as lithium (LiFePO4) batteries.
J35 allows charging of battery banks of up to 600Ah in capacity.
J35D allows you to charge the caravan battery to the optimal charge level from 230-240 Volt mains, your solar panel (28 Amp, or three panels 450W total), or from any auxiliary input, such as a power generator or your vehicle.

J35D will increase the life span of your battery thanks to the multiple battery protection features, such as low voltage disconnect, storage mode and multistage charging.
There are 14 outputs to connect your DC appliances, including hot water, water pump, lights, and many more. Built in electronic fuses protect the loads.

Offered as an option in a range of Jayco caravan models, the J35D can recover and charge a heavily discharged LiFePO4 battery.
The internal Battery Management System (BMS) of a LiFePO4 battery will turn off if it detects that the battery is heavily discharged.
The J35D will provide the voltage to restart the LiFePO4 battery’s BMS and then commence charging of the LiFePO4 battery. We recommend using J35D power and battery management system with BMPRO Invicta Lithium batteries.

Features:

14 x 12VDC outputs
35A maximum output current
30A maximum charging current
Solar 28 Amp
Lithium (LiFePO4) compatible

Specifications:

Charge Current (Solar): 28A
Input Voltage (AC): 110-240vAC
Charge Current (AC): 30A
Input Voltage (Solar): 15 - 25V (max)
Battery Chemistry: AGM / WET | Lithium (LiFeP04)
Smart Connect Ready: Yes
Low Voltage Disconnect: 10.5V
Battery Connect after LVD: 12.8V
Cooling: Thermally Controlled Fan
Weight: 2Kg
