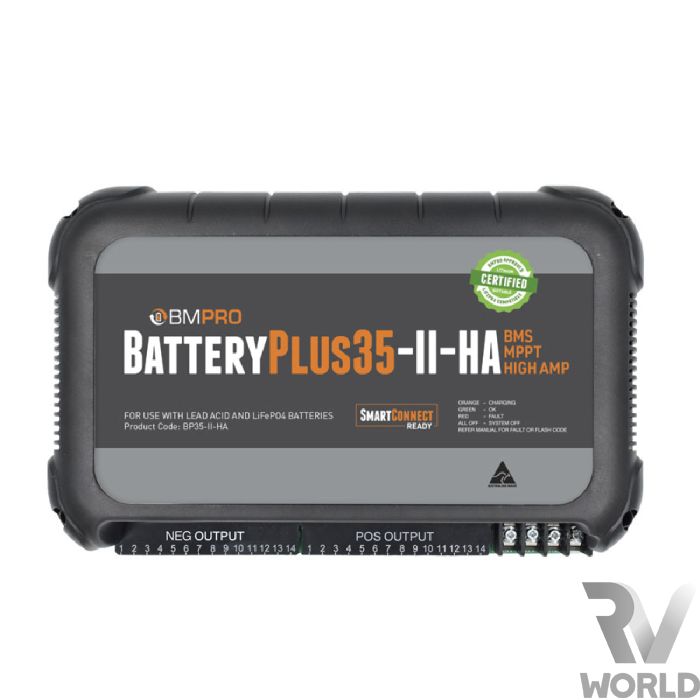

BMPRO BatteryPlus35-II-HA Battery Management System
BMPRO BATTERYPLUS35-II-HA Battery Management System
This all-in-one power solution includes a 35A power supply for 12V loads, 30A multi-stage AC and Solar MPPT charger and a host of battery protection features.
The slim and sturdy BatteryPlus35HA is fully equipped to charge the current generation of deep cycle batteries.
This system has been specifically designed to communicate with the innovative accessories such as the Trek display and monitoring unit-providing a new recreational vehicle experience.
Features:
Total output current 35A
30A multistage battery charger
LiFePO4 Lithium compatible
Distribution board with 10 at 10A and 2 at I5A, DC outputs for load connection
Electronic resettable fuses, automotive standard
Inbuilt solar MPPT regulator (420W, 30A, 25V max input)
Solar and Aux Blending
CAN bus connection for BMPRO accessories (Trek, CommLink/BC300)
In-built battery management system (BMS)
Auxiliary DC input
Load current limit
Low voltage disconnect
Charging profile: Lead acid and Lithium
Specifications:
Input Voltage Range: 110VAC to 240VAC
Input Surge: < 40A (Cold Start)
Output Current: 35A Continuous (load + battery current)
Factory Set Voltage: 13.65 ±2% (float voltage)
Output Ripple Voltage: <150mV
Over voltage Protection: 18V
Overcurrent Protection: 35A to 38A (load + battery current)
Battery Charge Current Limit: 30A Max
Battery Disconnect Voltage Lead Acid: 10.5V ±0.2V
Battery Disconnect Voltage LiFePO4: 12V ±0.2V
Battery Drain after LVD: <15mA
Efficiency: >83%
Cooling Fan: Thermally controlled
Solar Output Current: 30A (Only if solar is installed)
Solar Input Range: 15V to 25V
Ambient Temperature: 0°C - 50°C
Weight: 2kg
