BMPRO BC300 + COMMLINK

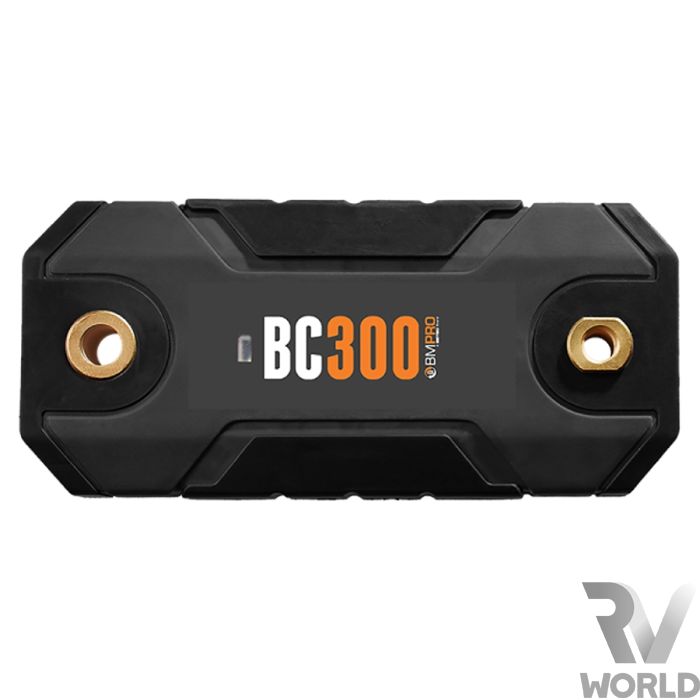

BMPRO BC300 External Shunt and CommLink
The BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 battery management systems, connecting directly to battery via the BC300 External Shunt. This enhances system behaviour with temperature monitoring of the battery for greater protection.
The addition of the BC300 to the BatteryPlus35 and J35 battery management systems allows high current loads and external charge sources.
The BC300 also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.
The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus. The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity. The shunt is rated for ±240A constant and 300A peak.
Features:
High current/external charge monitoring
Wireless Bluetooth communication to Commlink – easy to install / retrofit
DIY installation and simple pairing procedure
Compatible with Lead Acid and LiFePO4 deep cycle batteries
Battery Properties monitored: Voltage, Current (charging / discharging), Energy usage (Ah), Temperature (not displayed)
Specifications:
System Compatibility: BP35 (BMS), J35 (BMS)
Input Voltage (DC): 8 - 16V
Voltage Measurement Resolution: <20mV
Current Measurement Range: 300A
Continuous Current Rating: 240A
Current Measurement Resolution :<150mA
Monitored Battery Capacity: 7Ah to 800Ah
Communication Method: Bluetooth
Installation: Direct Negative Battery Post
Dimensions (mm): 140L x 65W x 18.6H
Weight (gm): 520
