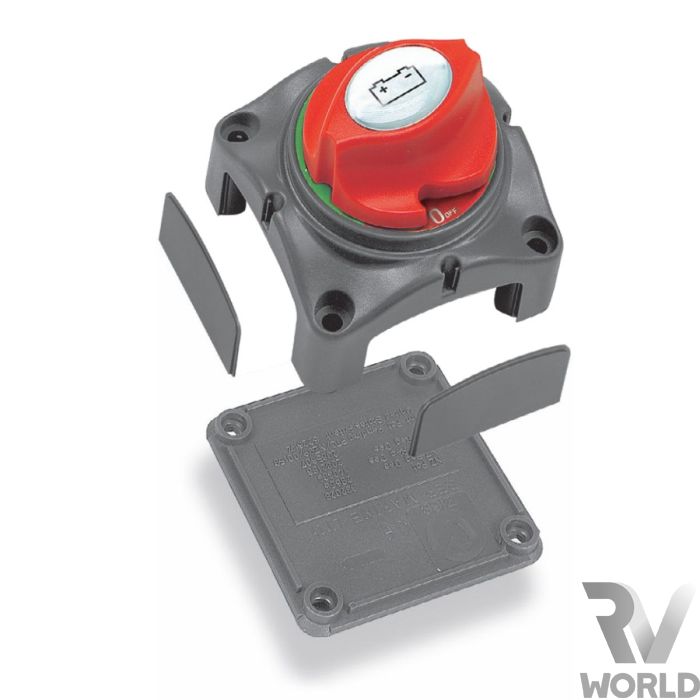

Battery Switch - Medium Duty 275A Switch
Rated at 275 amps continuous and 1250 amps cranking this battery switch is suited to medium-sized RVs and vessels. It can be recessed or surface mounted. It has a self-cleaning sliding contact.
Battery Switch 275A
This medium-duty battery switch features a patented Contour Locking System, allowing it to be a stand-alone unit, or locked together with other switches. The 701 also features a control knob which cannot be removed whilst in the ON or OFF position, however, it can be removed by switching to an anti-clockwise 45° position. The control knob also features an interchangeable labelling system allowing a full range of applications. The 701 also features removable side plates on 3 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits and this switch can be either surface or recess mounted.
Rated at 275 amps continuous and 1250 amps cranking this battery switch is suited to medium-sized RVs and vessels. It can be recessed or surface mounted. It has a self-cleaning sliding contact.
Feature:
Can be either surface or recess mounted by cutting a 2.1" (52 mm) hole
Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH)
Tin-plated copper studs and nuts
Ignition-protected
Specifications:
Dimensions (mm): 69L x 69W x 75H
Continuous rating: 275 Amps
Intermittent rating: 455 Amps
Mounting: recessed or surface
Termination stud size: 2 x 10 mm (3/8 inch)
| Dimensions (mm) | 69L x 69W x 75H |
|---|---|
| Warranty | 1 year |
| Continuous rating | 275 Amps |
| Intermittent rating | 455 Amps |
| Cranking rating | 1250 Amps |
| Voltage rating | 48 Volts |
| Operation | On/Off |
| Mounting | recessed or surface |
| Termination stud size | 2 x 10 mm (3/8 inch) |
