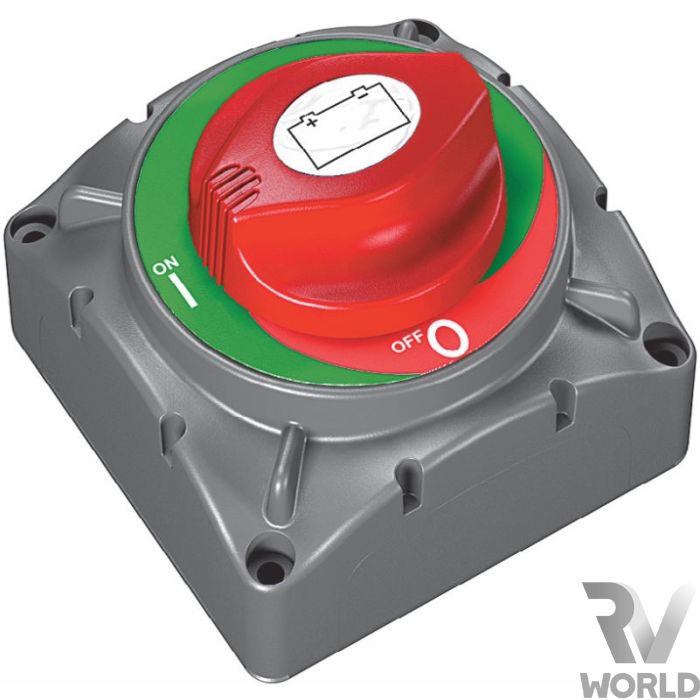

Battery Switch - Heavy Duty 600A Switch
Rated at 600 amps continuous and 2500 amps cranking this battery switch is well suited to larger RVs and vessels. It can be recessed or surface mounted. It has a self cleaning sliding contact.
Battery Switch 600A
Suited to larger vessels, this heavy-duty battery switch fits into the same contour lock system as used on the battery distribution system and is rated at 600A continuous and 2500A cranking. This can be recessed or surface mounted and has a self-cleaning sliding contact as used in the 701 battery switch.
Features
Rated at 600 amps continuous and 2500 amps cranking.
This battery switch is well suited to larger RVs and vessels.
Can be recessed or surface mounted.
Self-cleaning sliding contact.
Specifications
DC Voltage: 48V
Stud Size (Metric): 2 x 12mm
RoHS Compliant: (Restriction of Hazardous Substances Directive) °Contact Compliance
Continuous Rating:600
Intermittent Rating:800
Cranking Rating:2500
| Dimensions (mm) | 102L x 102W x 90H |
|---|---|
| Warranty | 1 year |
| Continuous rating | 600 Amps |
| Intermittent rating | 800 Amps |
| Cranking rating | 2500 Amps |
| Voltage rating | 48 Volts |
| Operation | On / Off |
| Mounting | recessed or Surface |
| Termination stud size | 2 x 12 mm (1/2 inch) |
