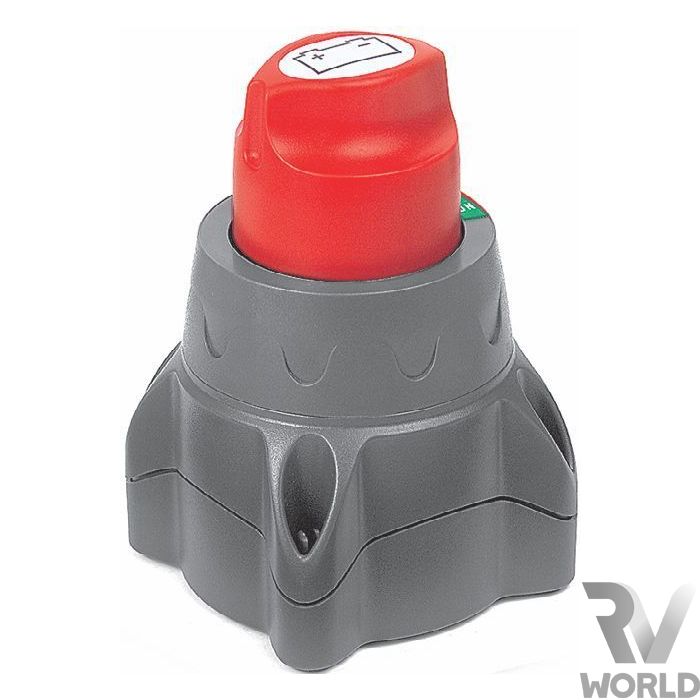

Battery Switch - Easy Fit 275A Switch
Battery Switch 275A
The Easyfit Battery Switch was created is ideal for installation where need to be recessed through varying thicknesses of panels. It achieves this through an easily removable threaded ring that allows for panel thicknesses up to 3/4" (19 mm). This switch uses the same features as the 701 with the removable key 45 degrees past the off position, labelled handle and a removable back cover covering exposed terminals to meet ABYC specifications. It can also be surface mounted offering a unique style compared to other switches available on the market.
Features:
Can easily be retro-fitted in place of most European post and lever type switches
Moulded in high temperature, fibre reinforced plastics
Tin-plated copper studs and nuts
Ignition-protected
tested Independently to this specification by a 3rd party laboratory.
Specifications:
Continuous rating: 275 Amps
Intermittent rating: 455 Amps
Cranking rating: 1250 Amps
Mounting: recessed or surface
Termination stud size: 2 x 10mm (3/8“)
| Warranty | 1 year |
|---|---|
| Continuous rating | 275 Amps |
| Intermittent rating | 455 Amps |
| Cranking rating | 1250 Amps |
| Voltage rating | 48 Volts |
| Operation | On/Off |
| Mounting | recessed or surface |
| Termination stud size | 2 x 10mm (3/8“) |
