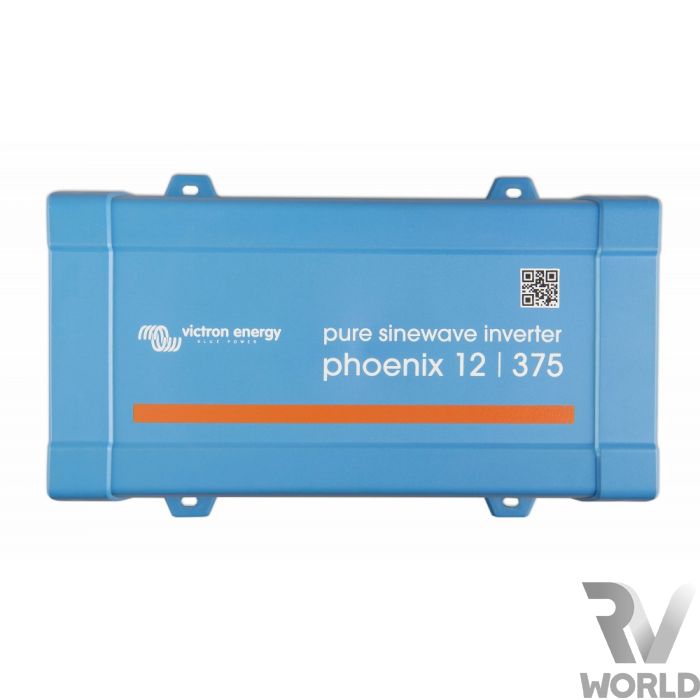

375W Pure Sine Wave Inverter. Victron Phoenix 375
The Victron Phoenix inverter allows you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V
Victron 375 Inverter 12/24V
The Victron Phoenix inverter range is a top of the line inverter series developed for professional use.
They are a popular off-grid power solution with a high surge capacity to suit almost all applications.
Features:
Fully configurable
Eco Mode - inverter will switch to standby when load deceases below a pre-set value.
LED Diagnosis
No special tools needed for installation
Extra start-up power
A unique feature is very high start-up power. Conventional high frequency technology does not offer such extreme performance.
DC battery connection wired directly to inverter
Specifications:
Cont. Power at 25°C: 375W
Peak Power: 700W
Battery Connection: Screw Terminal
Standard AC Outlets: 230V AU/NZ (AS/NZ3112)
Operating Temperature Range: -40 to +60°C (Fan Assisted cooling)
Dimensions(mm):86H x 165W x 260D
Weight: 3 kg
| Weight | 3.5kg |
|---|---|
| Dimensions (mm) | 237L x 155W x 72H |
| Warranty | 2 years |
| Input voltage options | 12V or 24V |
| Input voltage range | DC 10.5–15.5V, 21–31V or 42-62V |
| Output voltage (AC) | 230V ± 2% |
| Output frequency | 50HZ |
| Output power (continous) | 375W |
| Output power (surge) | 750W |
| Output waveform | Pure sine wave |
| Optimum efficiency | 89% or 90% |
| Battery low shutdown | Adjustable 9.3/18.6/37.2 VDC |
| Protection | Output short circuit, overload, battery voltage too low or too high, over temeprature. |
| Input Power (no load) | 3-6W |
