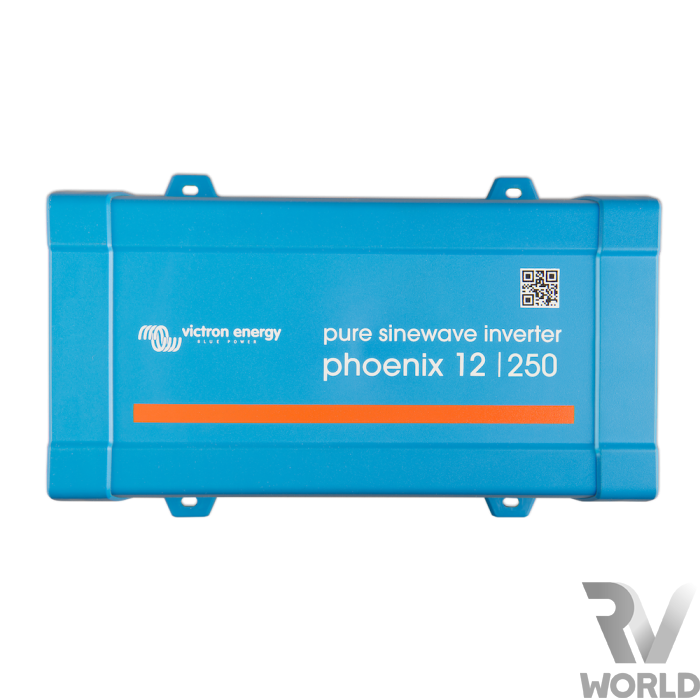

250W Pure Sine Wave Inverter. Victron Phoenix 250
The Victron Phoenix inverter allows you to power domestic equipment - requiring 230V AC - using a 12V battery
Victron 250W Inverter 12V
The Victron Phoenix inverter range is a top of the line inverter series developed for professional use, the Phoenix series of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any type of load.
They are a popular off-grid power solution with a high surge capacity to suit almost all applications.
Features:
Fully configurable
Eco Mode - inverter will switch to standby when load deceases below a pre-set value.
LED Diagnosis
No special tools needed for installation
Extra start-up power
A unique feature is very high start-up power. Conventional high frequency technology does not offer such extreme performance.
DC battery connection wired directly to inverter
Specifications:
Cont. Power at 25°C: 250W
Peak Power: 400W
Battery Connection: Screw Terminal
Standard AC Outlets: 230V AU/NZ (AS/NZ3112)
Operating Temperature Range: -40 to +60°C (Fan Assisted cooling)
Dimensions (mm): 86H x 165W x 260D
Weight: 2.4 kg
| Weight | 2.7kg |
|---|---|
| Dimensions (mm) | 200L x 132W x 72H |
| Warranty | 2 years |
| Input voltage options | 12V |
| Input voltage range | DC 10.5–15.5V |
| Output voltage (AC) | 230V ± 2% |
| Output frequency | 50HZ |
| Output power (continous) | 250W |
| Output power (surge) | 500W |
| Output waveform | Pure sine wave |
| Optimum efficiency | 87% or 88% |
| Protection | Output short circuit, overload, battery voltage too low or too high, over temeprature. |
| Input Power (no load) | 3-4W |
