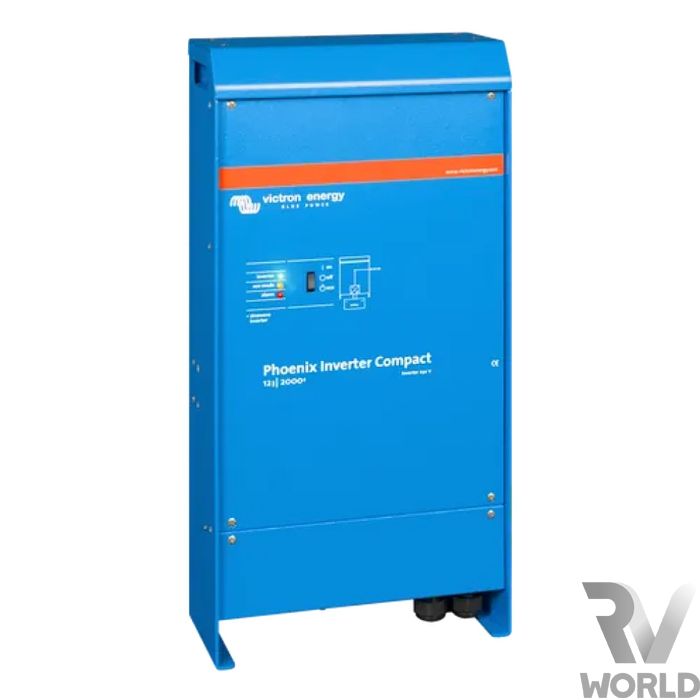

2000W Pure Sine Wave Inverter. Victron Phoenix C2000
The Victron Phoenix inverter allows you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V
Victron Phoenix C2000 Inverter 12/24V
The Victron Phoenix inverter range is a top of the line inverter series developed for professional use, the Phoenix series of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance.
Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any type of load.
They are a popular off-grid power solution with a high surge capacity to suit almost all applications.
Features:
Fully configurable
Eco Mode - inverter will switch to standby when load deceases below a pre-set value.
LED Diagnosis
No special tools needed for installation
Extra start-up power
A unique feature is very high start-up power. Conventional high frequency technology does not offer such extreme performance.
DC battery connection wired directly to inverter
Virtually unlimited power thanks to parallel and 3-phase operation capability -Up to 6 units inverters can operate in parallel to achieve higher power output.
Programmable Relay
Battery connection: Battery cables of 1.5m included
Specifications:
Cont. power at 25°C: 1600VA
Peak Power: 3000W
Battery Connection: M8 bolts
Standard AC Outlets: 230V AU/NZ (AS/NZ3112)
Operating Temperature Range: -40 to +60°C (Fan Assisted cooling)
Dimensions (mm):375H x 214W x 110D
Weight: 10 kg
Additional items available for this inverter: Phoenix Inverter Control Panel
| Weight | 12kg |
|---|---|
| Dimensions (mm) | 520L x 255W x 125D |
| Warranty | 2 years |
| Input voltage options | 12V or 24V |
| Input voltage range | DC 9.5–17V or 19–33V |
| Output voltage (AC) | 230V ± 2% |
| Output frequency | 50HZ |
| Output power (continous) | 2000W |
| Output power (surge) | 4000W |
| Output waveform | Pure sine wave |
| Optimum efficiency | 92% |
| Protection | Output short circuit, overload, battery voltage too low or too high, over temeprature. |
| Input Power (no load) | 5-10W |
| Input Power (search mode) | 2-3W |
